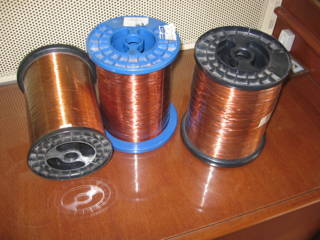

COPPER WIRE
High thermal properties and good chemical resistance.
Widely used in motors and transformers.
SPECIFICATION
Winding Wire Series:
TYPE: PEW-130
Work continuously under 130 Celcius.
It has excellent mechanical and electrical properties and is suitable for winding in general motors of class B and coils in electrical instruments.
TYPE: PEWN-155
Work continuously under 155 Celcius.
It is suitable for winding in motors of class F and coils in electrical instruments.
Moreover, it has excellent properties of resistance to solvent and heat.
TYPE:EIW-180
Work continuously under 180 Celcius.
Key Performance is for its heat shock resistance and cut through testing endurance.
Product is suitable for winding in anti detonating motors, lifting motors of class F and high quality household appliance.
TYPE:EIAIW-200
This particular EI-AIW-200 class performs consistently under 200 Celcius.
Widely used for high temperature air motor and transformer, air conditioner compressor, high quality power tools, and light fittings.
Size Available:
| PEW-130 (MM) |
PEW-155 (MM) |
EIW-180 (MM) |
AIW-200 (MM) |
| 0.10 | 0.40 | 0.40 | 0.40 |
| 0.12 | 0.45 | 0.45 | 0.45 |
| 0.15 | 0.50 | 0.50 | 0.50 |
| 0.18 | 0.55 | 0.55 | 0.55 |
| 0.20 | 0.60 | 0.60 | 0.60 |
| 0.25 | 0.65 | 0.65 | 0.65 |
| 0.30 | 0.70 | 0.70 | 0.70 |
| 0.35 | 0.75 | 0.75 | 0.75 |
| 0.40 | 0.80 | 0.80 | 0.80 |
| 0.45 | 0.85 | 0.85 | 0.85 |
| 0.50 | 0.90 | 0.90 | 0.90 |
| 0.55 | 0.95 | 0.95 | 0.95 |
| 1.00 | 1.00 | 1.00 | |
| 1.05 | 1.05 | 1.05 | |
| 1.10 | 1.10 | 1.10 | |
| 1.15 | 1.15 | 1.15 | |
| 1.20 | 1.20 | 1.20 | |
| 1.25 | 1.25 | 1.25 | |
| 1.30 | 1.30 | 1.30 | |
| 1.40 | 1.40 | 1.40 | |
| 1.50 | 1.50 | 1.50 | |
| 1.60 | 1.60 | ||
| 1.80 | 1.80 | ||
| 2.00 | 2.00 | ||
| 2.20 | 2.20 | ||
| 2.50 | 2.50 | ||
| 3.00 | 3.00 | ||
| 3.50 | 3.50 | ||
| 4.00 |

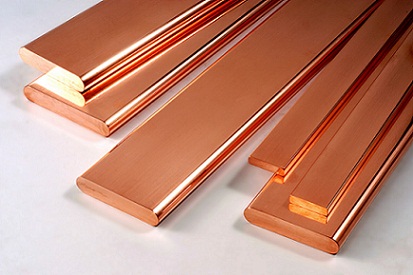

BUSBAR
Is a metallic strip or bar.
Widely used for housed inside switchgear, panel boards, and busway enclosures for local high current power distribution.
SPECIFICATION
Length : 4000mm

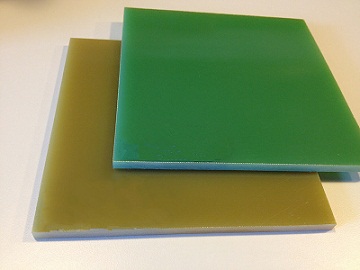

ELECTRICAL ISULATION-EPOXY GLASS
This product has higher mechanical property and heat resistance, stable dielectric property after soaking.
It is used as insulating structural parts for electric machine and apparatus equipments.
SPECIFICATION
Color : yellow and green
Length : 1000mm
Width : 2000mm

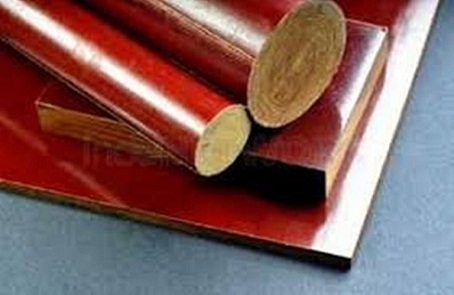

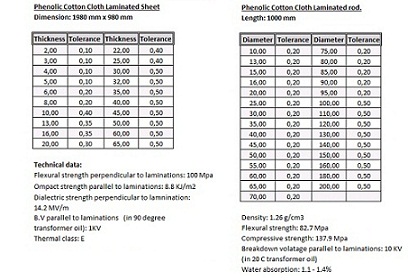

ELECTRICAL ISULATION-COTTON TEXTILE PHENOLIC RESIN
Novotext is a trade name for cotton textile-phenolic resin.
Widely used in car engines for gear wheels used to provide a direct drive to the camshaft as it is flexible and quiet-running.
SPECIFICATION

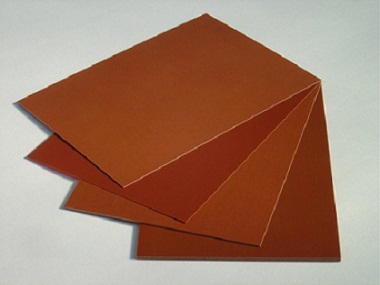

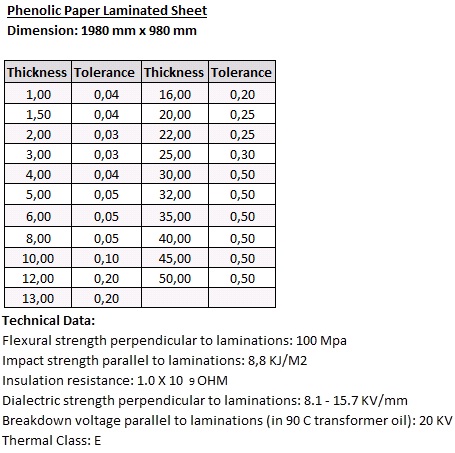

ELECTRICAL ISULATION-PHENOLIC PAPER (LAMINATED SHEET)
It is a NEMA designation for synthetic resin bonded paper, a composite material made of paper impregnated with a plasticized phenol formaldehyde resin.
Pertinax and Phenolic Paper (Laminated Sheet) are few from many trade names for synthetic resin bonded paper.
Widely used in the manufacture of printed circuit boards.
SPECIFICATION

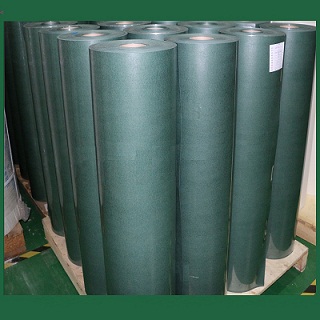

ELECTRICAL ISULATION-PRESPAN FILM PAPER
Prespan Film Paper is pure plastic coated paper and films has a heat resistance up to 150 Celcius.
Widely used in dynamo or a transformer requiring heat resistance standard.
SPECIFICATION
Length : 1000mm
Color : green
Standard: IEC 60626-3-10

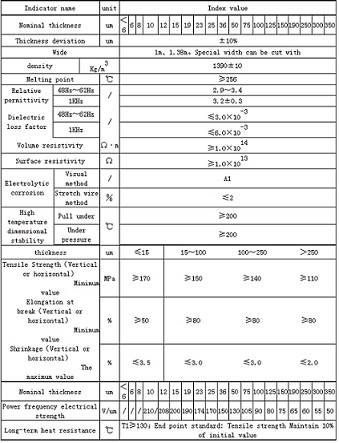

ELECTRICAL ISULATION–MYLAR POLYESTER FILM
The polyester film is made by special manufacturing process can reach B class(130 Celcius) and UL flame retardant grade.
Widely used in electrical work intended class A, household electrical machines.
SPECIFICATION
Length : 1000mm
Color : white

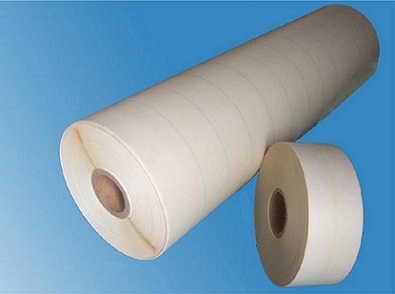

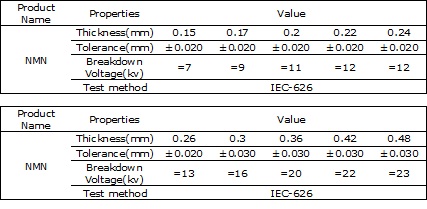

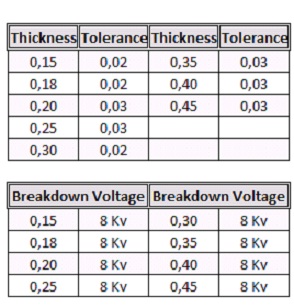

ELECTRICAL ISULATION–NOMEX PAPER
Nomex Paper is Laminates of 2 layers of aramid paper(Nomex®) bonded toone layer of high grade polyester film.
Widely used in generators, transformers electrical equipment, electrical and household appliances work intended class A, household electrical machines.
PROPERTIES:
•Insulation class F (155 celcius).
•Smooth, abrasion-resistant surface ensures excellent machinability.
•Excellent dielectric properties and mechanical tensile strength.
•Excellent absorption of impregnating and trickle resins.
SPECIFICATION
Length : 1000mm
Color : White-strip
ELECTRICAL ISULATION-VARNISH
Can be used for coil impregnation of AC/DC motor and surface treatment of electric machines.
This product has higher mechanical property and heat resistance, stable dielectric property after soaking.
Widely used as insulating structural parts for electric machine and apparatus equipments.
SPESIFICATION
1.Dielectric Strength (V/0.1mm)
•Normal state: > 4.500
•After 24 hrs water immersion: >2.500
2.Thermal class A
3.Color
•Yellow
•Red
4.Brand Name
•Kwang Ming
•SSS

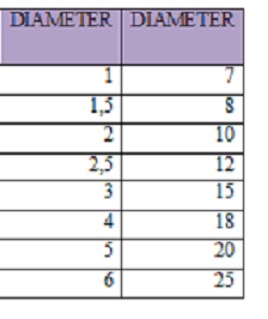

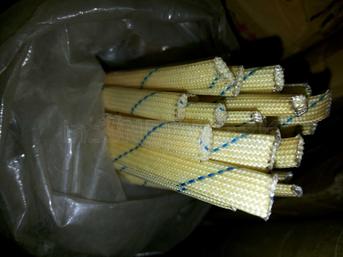

FIBERGASS SLEEVING COATED
Fibergass Sleeving Coated with Polyvinyl Chyloride Resin VG 2.5KV:
SPECIFICATION
Length : 1000mm
Color : white-strip

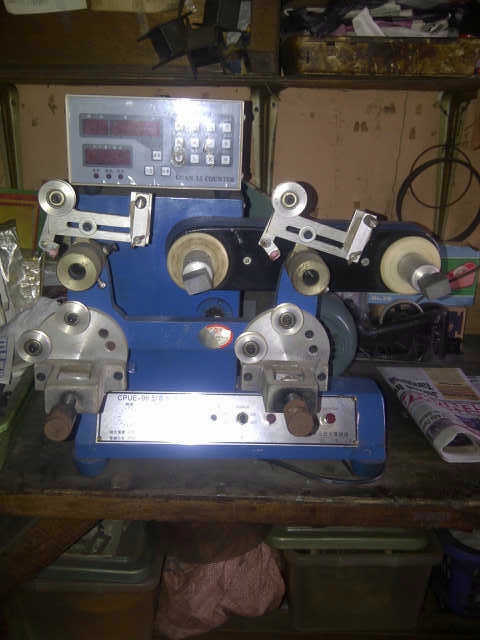

TRANSFORMERS MACHINE
Automatic roll machine widely used in modern transformers of small to moderate size are usually wound on plastic bobbins.
SPESIFICATION
Size of enameled wire: 0,10mm – 0,35mm
Operating: 2 bobbins in one time
